Description

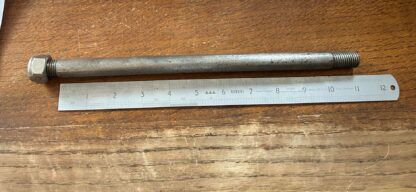

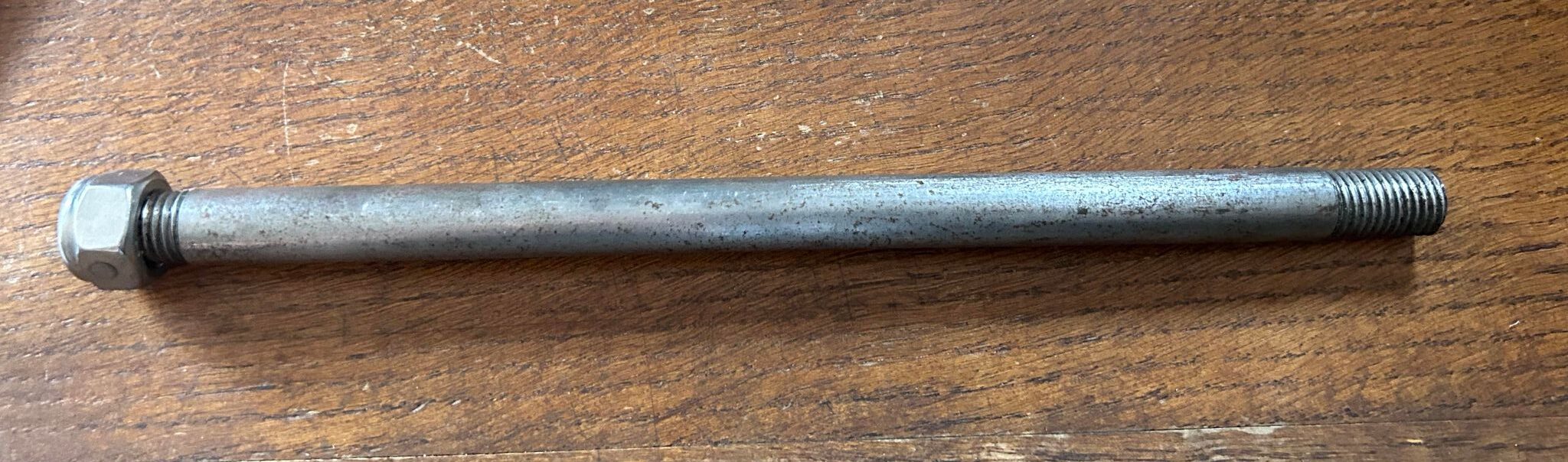

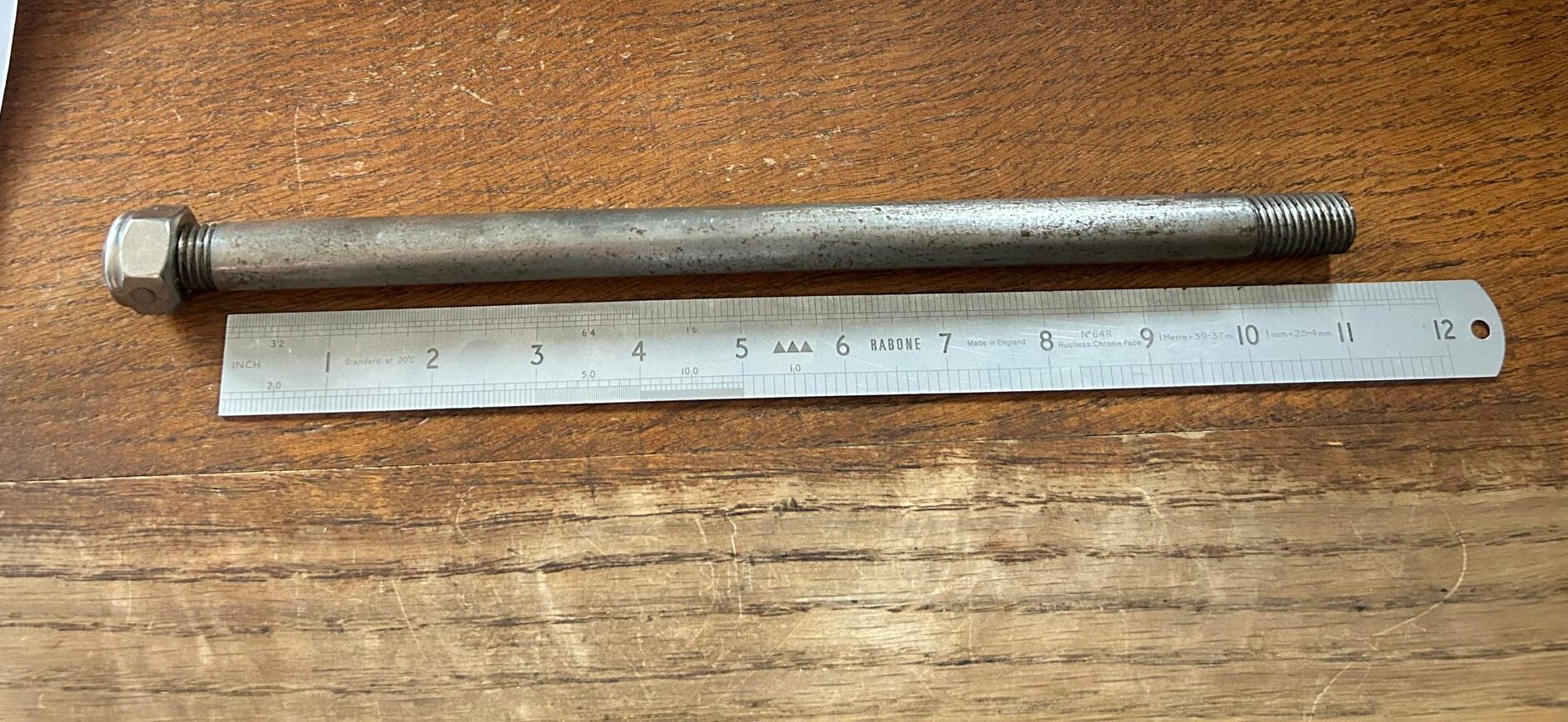

New 17mm steel spindle with captive stainless nut that is pinned to the axle.
Maximum overall length is 305mm (outer end to outer end)
Shaft diameter is 17mm.
Shaft length where is there are no threads is approx 254mm.
Length from the underside of the fixed nut to the end of the shaft (inc threads) is approx = 287mm
Length from the underside of the fixed nut to the end of the shaft (before teh threads start) is approx = 260mm
Length from underside of 17mm diameter section of shaft is 165mm long.

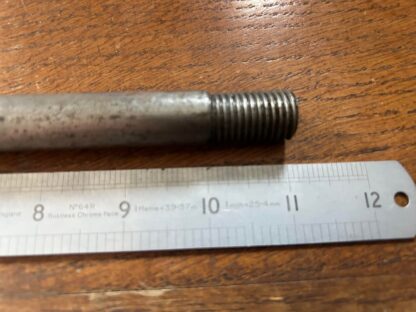

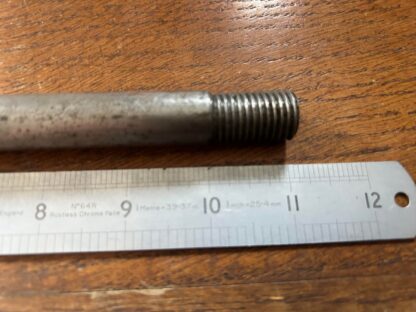

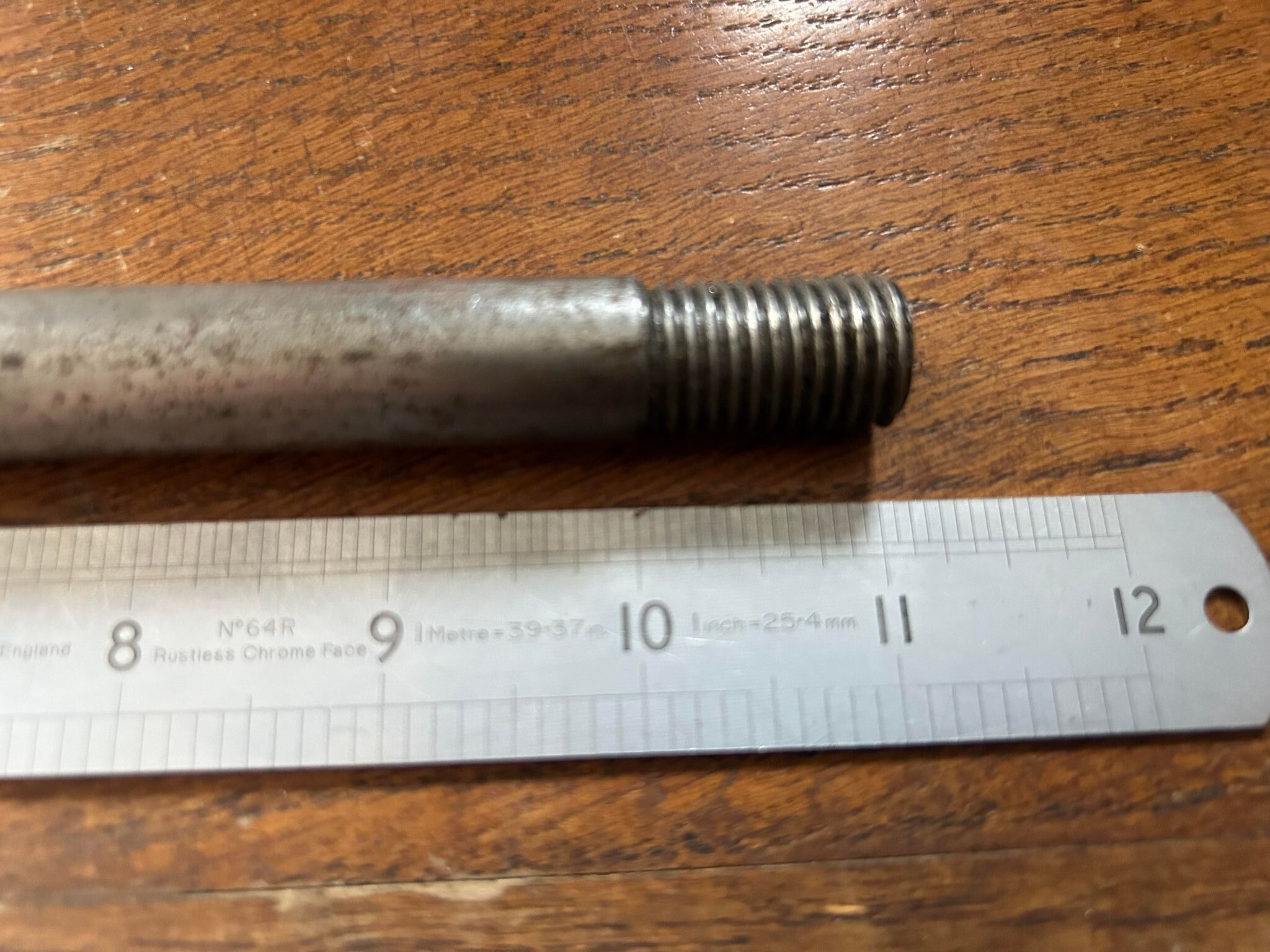

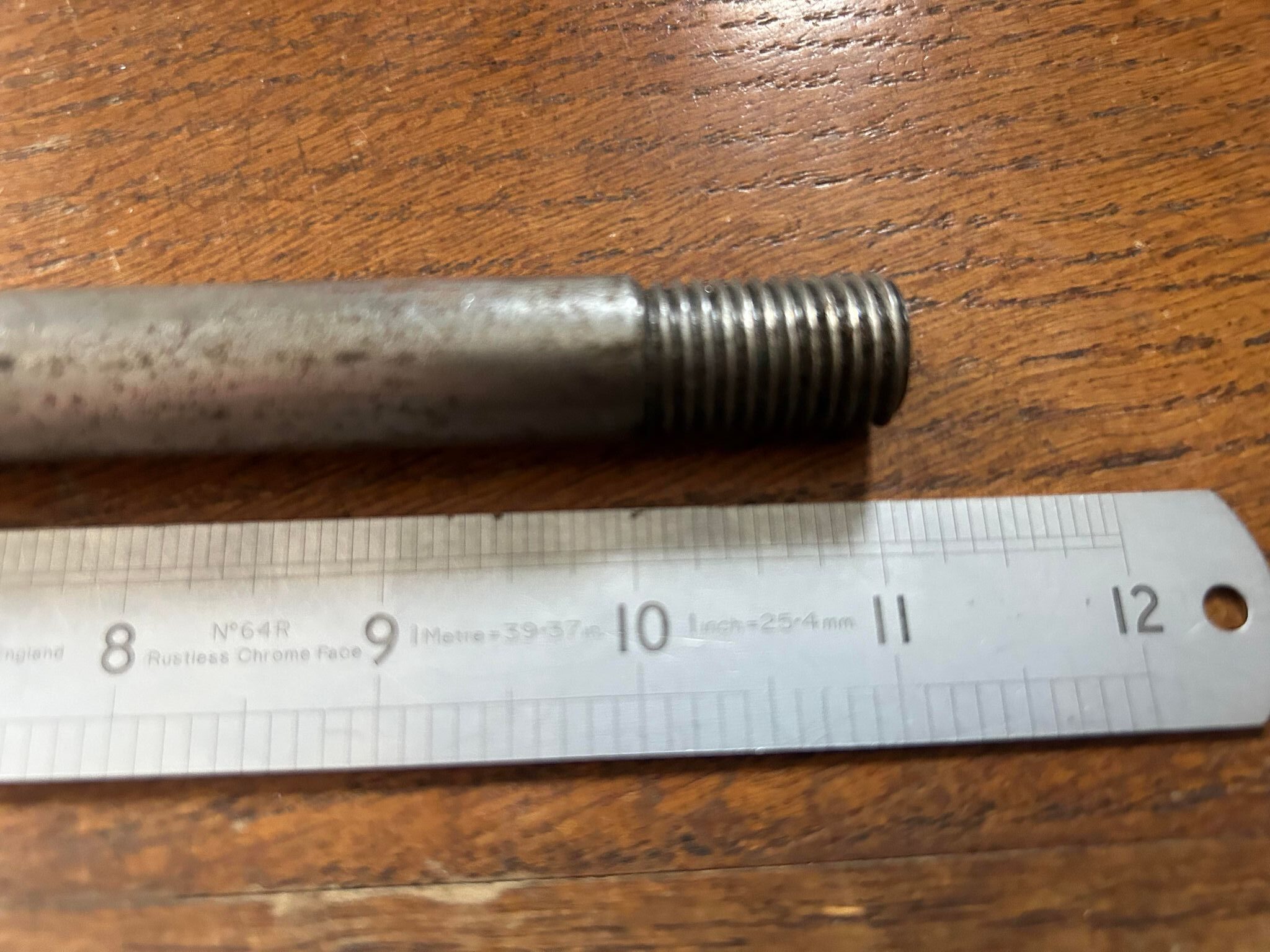

Threaded section is approx 25mm.
